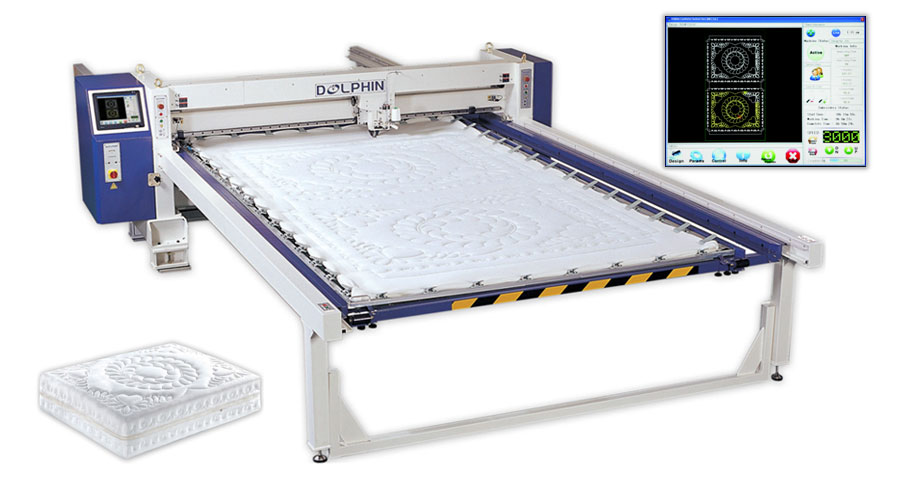

DNC-2400S

TECHNICAL DATA
CONTROL SYSTEM
WINDOWS XP EMBEDED SYSTEM FOR MATRESS
MONITOR
TFT LCD COLOR TOUCH SCREEN
MEMORY CAPACITY
40G BYTE
MAX. WORKING SPEED
3,000 RPM
MAX. STITCH AREA (mm)
2,400(W) x 4,000(L) – DNC 2400S MODEL
TRIMMING SYSTEM
AUTO (UPPER/LOWER)
THREAD DETECT SYSTEM
AUTO
OILING SYSTEM
AUTO (UPPER/LOWER)
NEEDLE
DP x 5, DP x 17
ROTARY HOOK
LARGE SIZE
MACHINE DIMENSIONS (mm)
3,950(W) x 8,300(L) x 1,250(H)
MOTOR
SERVO MOTOR x 3 (MAIN, X, Y AXIS)

※ The specification may be changed without prior notice.
